Tamiya 1/10 R/C TA08R Chassis Kit

In Stock

Delivery: Monday (UK Mainland)

Collection: Collect in-store at Chichester, West Sussex


£519.99
SAVE: £75.00
£444.99

SKU: 47498

Material Code: 47498

Brand: Tamiya

  • Limited Edition
  • Included Hop Up Options
  • 1:10 Scale
  • Un Assembled Kit
  • 4WD Drivetrain

Tamiya 1/10 R/C TA08R Chassis Kit

With the addition of several important Hop-Up Options straight out of the box and a few parts that are exclusive to this edition, the TA08PRO gets the limited-edition treatment in the shape of the TA08R!

Included Hop-Up Option Parts:



  • 51565: TRF419 Gear Differential Unit Aluminium Diff Joint (2pcs.)
  • 22004: TA08 Aluminium Servo Mount
  • 22005: TA08 Carbon Damper Stays (Front & Rear)
  • 22016: TA08 Low Friction King Pin Balls (4pcs.)
  • 42319: Lightweight Cross Joints for Double Cardan Joint Shafts (4pcs.)
  • 42320: Lightweight Joint Casings for Double Cardan Joint Shafts (2pcs.)
  • 42346: TRF420 Wheel Axles (2pcs.)
  • 42351: TRF420 Centre Pulley
  • 42357: Cross Joints for Low Friction Assembly Universal Shafts
  • 42359: VG O-Rings for Oil Dampers (30°)
  • 42361: 43mm Drive Shafts for Low Friction Double Cardan Joint Shafts (2pcs.)
  • 42363: Axle Shafts for TRF420 Double Cardan Joint Shafts (2pcs.)
  • 42374: VG O-Rings for Gear Differentials (40°)
  • 53823: Clamp Type Aluminium Wheel Hub (5mm Thick)
  • 53968: 5x5mm Hard Hex Head Ball Head Connector (5pcs.)
  • 53969: 5x8mm Hard Hex Head Ball Head Connector (5pcs.)
  • 54121: Aluminium Horn for High Torque Servo Saver
  • 54642: 4mm Flange Lock Nut (Black, 8pcs.)
  • 51647: TRF420 Aluminium Front Direct Cups (2pcs.)
  • 54704: TA07 Aluminium Steering Arm Set
  • 54881: Aluminium Adjustable Suspension Mount (A)
  • 54883: Aluminium Adjustable Separate Suspension Mounts (XB)
  • 54884: Aluminium Adjustable Separate Suspension Mounts (A)
  • 54949: TA07 Adjustable Ackerman Set
  • 1/10 scale R/C touring car chassis kit.
  • NEW-The 2.0mm carbon fibre upper deck connects front and rear bulkheads for pitch rigidity and utilizes a 630-ball bearing at the rear for roll rigidity.
  • NEW-Front and rear aluminium upper arm mounts provide enhanced rigidity.
  • NEW-The aluminium motor mount has two screw-attached, upper deck attachment points.
  • NEW-Rear body mount uses carbon fibre plates and aluminium posts, and limits body wobble and ensures stable rear traction. Body mount extensions (from Item 54604) allow attachment of bodies of different heights.
  • NEW-Additional ribs on the lower deck limit its deformation for superior suspension performance and help limit damage after unexpected crashes.
  • Gear units are front direct pulley (aluminium direct coupling) and rear gear differential (aluminium differential joint). Item 42351 TRF420 Centre Pulley and 71T spur gear are used at the centre for stability even under high load.
  • The drive shafts are double cardan shafts at the front and lightweight universal shafts at the rear.
  • Front aluminium pipes and cross joints are lightweight aluminium.
  • NEW-Aluminium wheel hubs limit wheel deformation and ensure stable tire grip.
  • Comes with 43mm swing shafts, Super Short Big Bore size dampers and front and rear carbon fibre damper stays, plus adjustable suspension mounts.
  • The model comes in a convenient carry case.

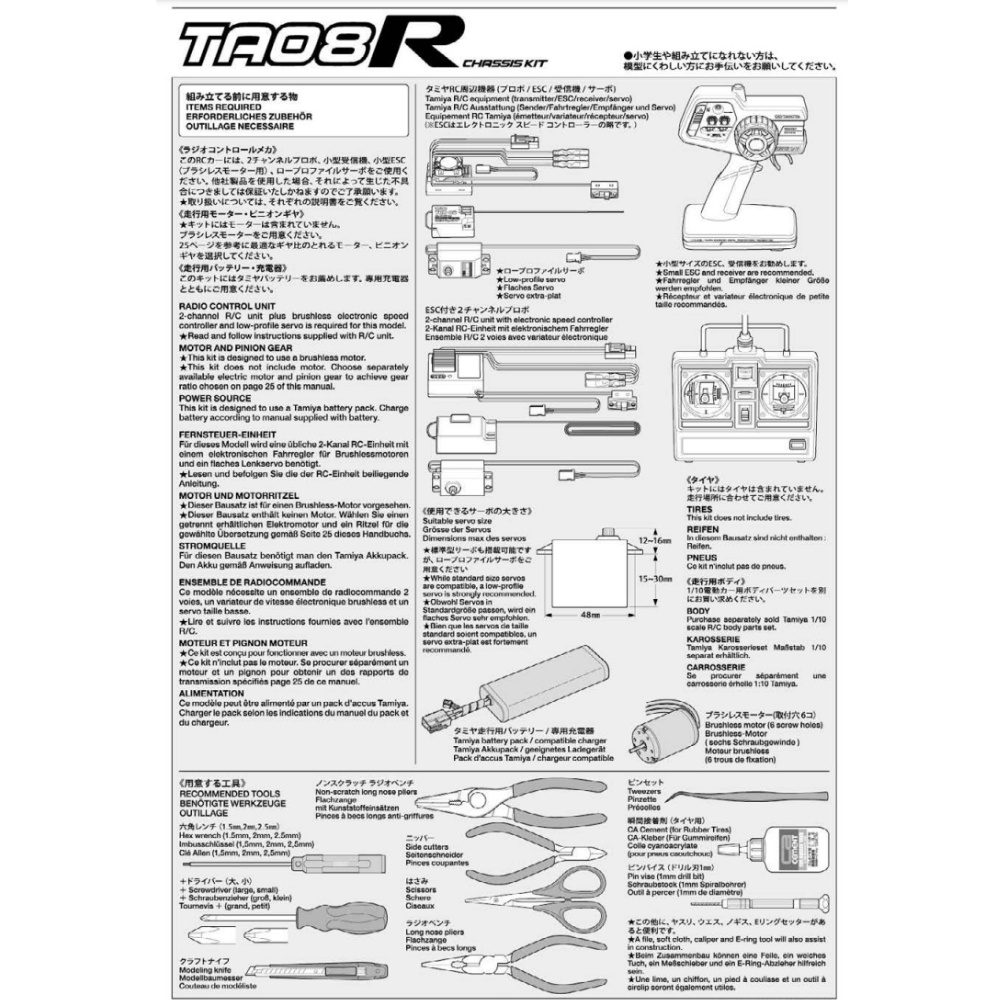

  • Required to complete: 2-channel radio, steering servo, ESC, motor, 7.2-7.4volt battery with compatible charger, tires, and body.
