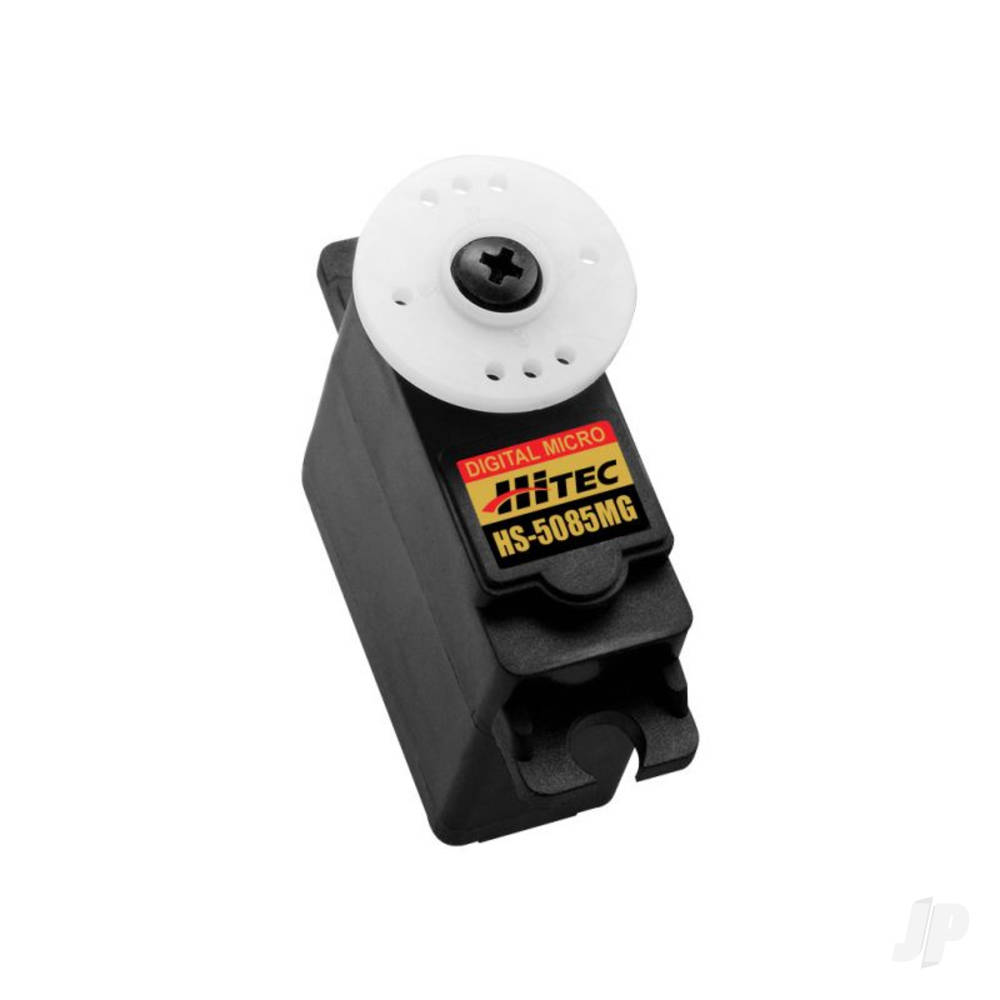

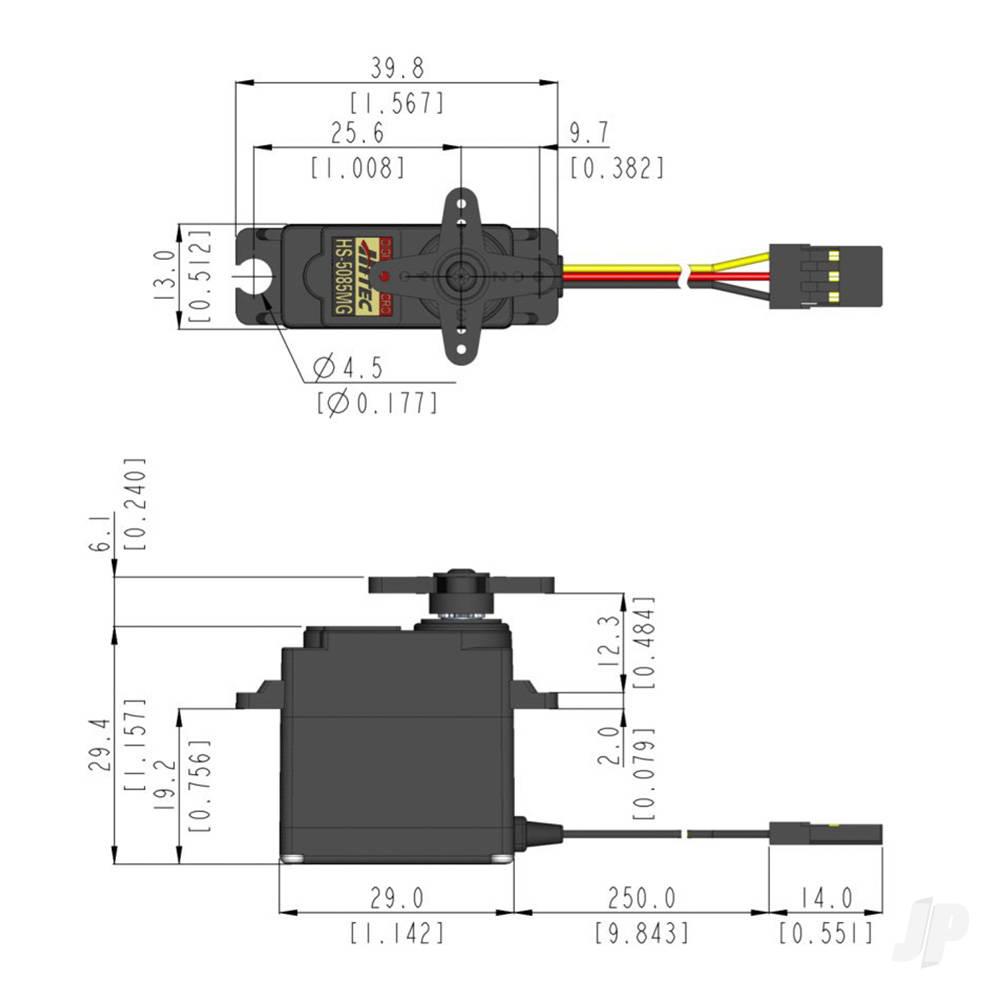

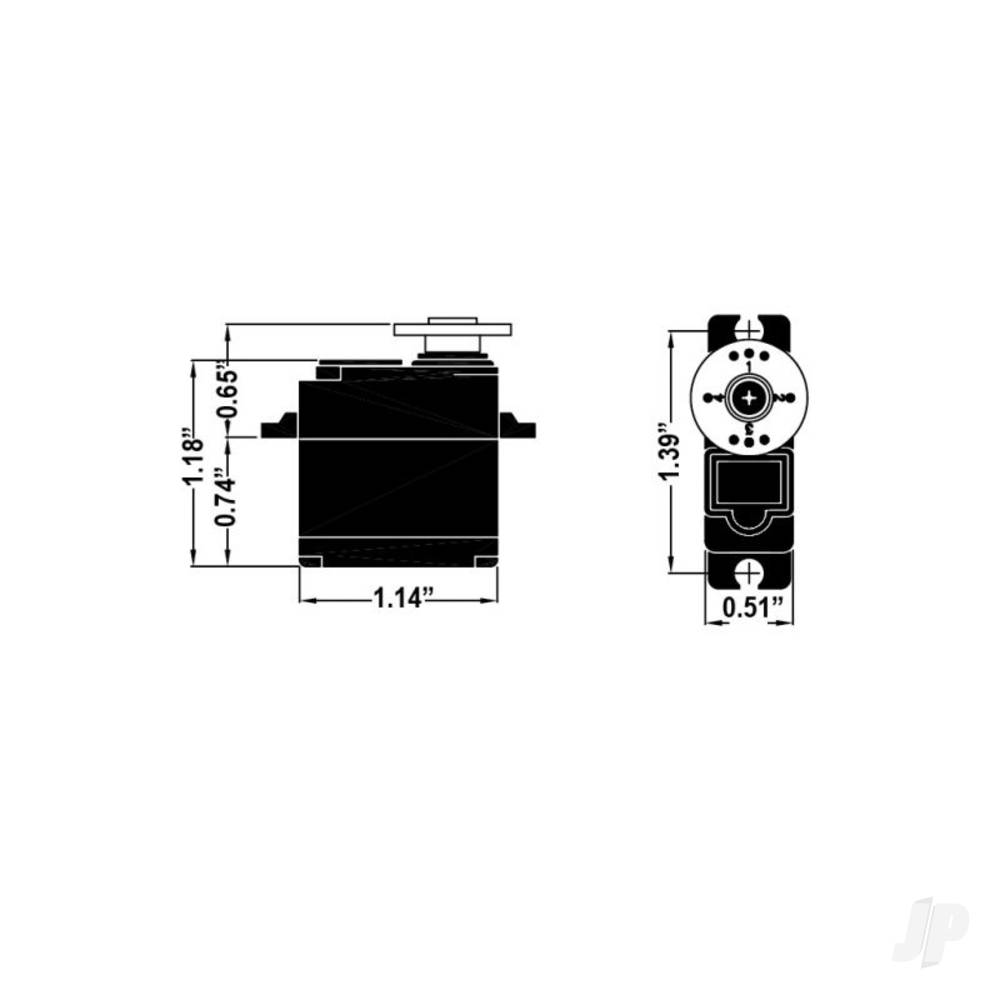

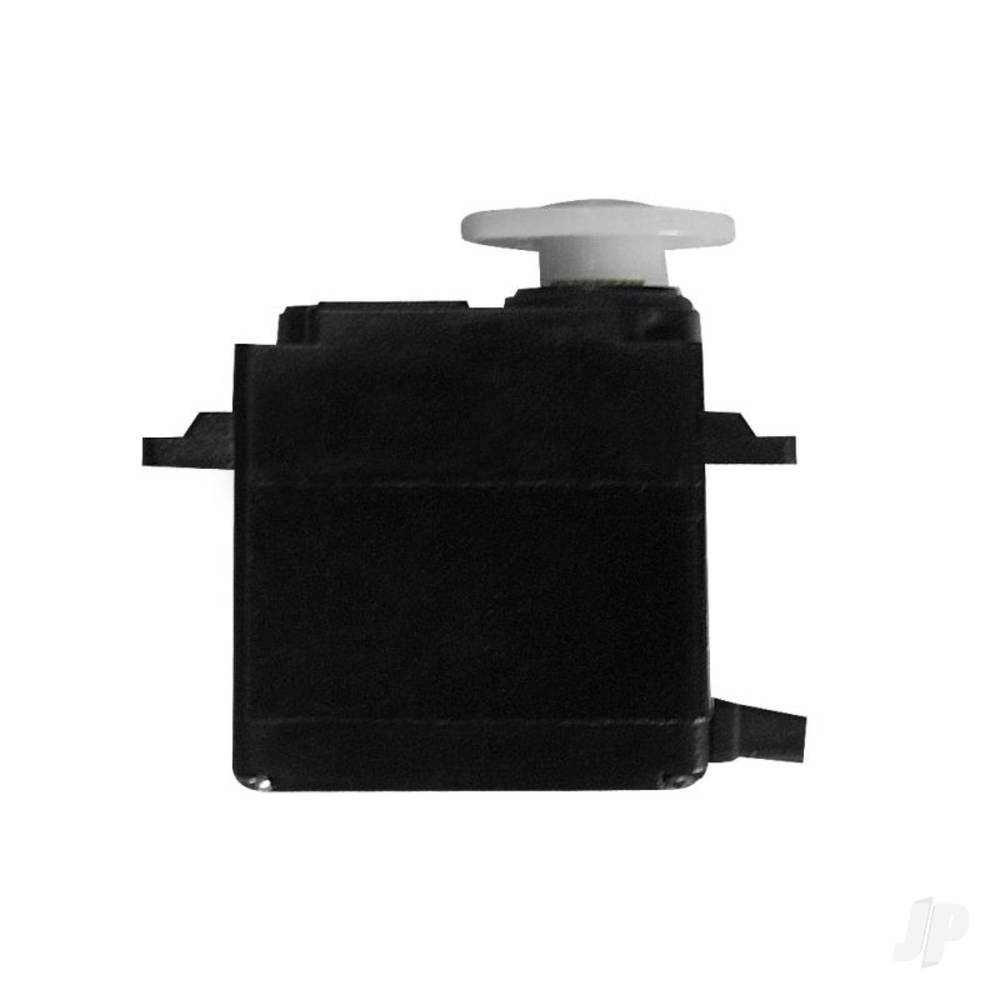

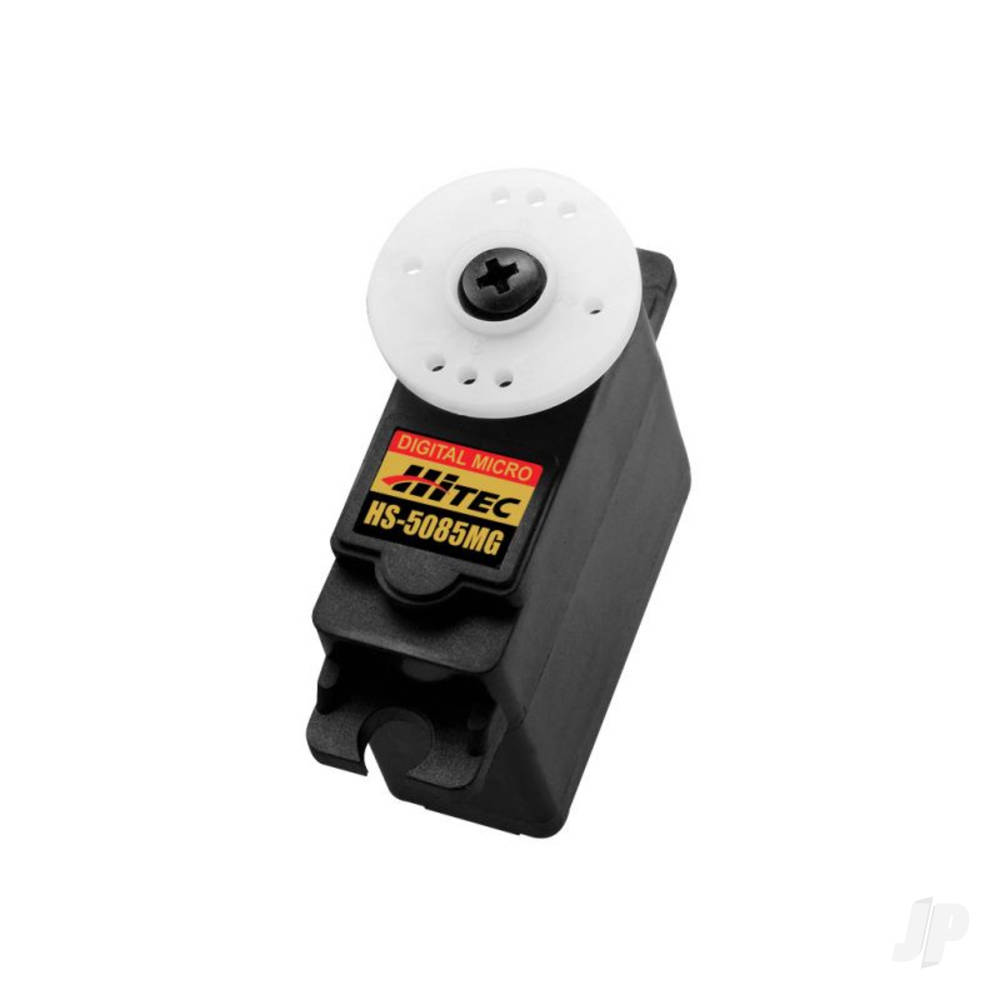

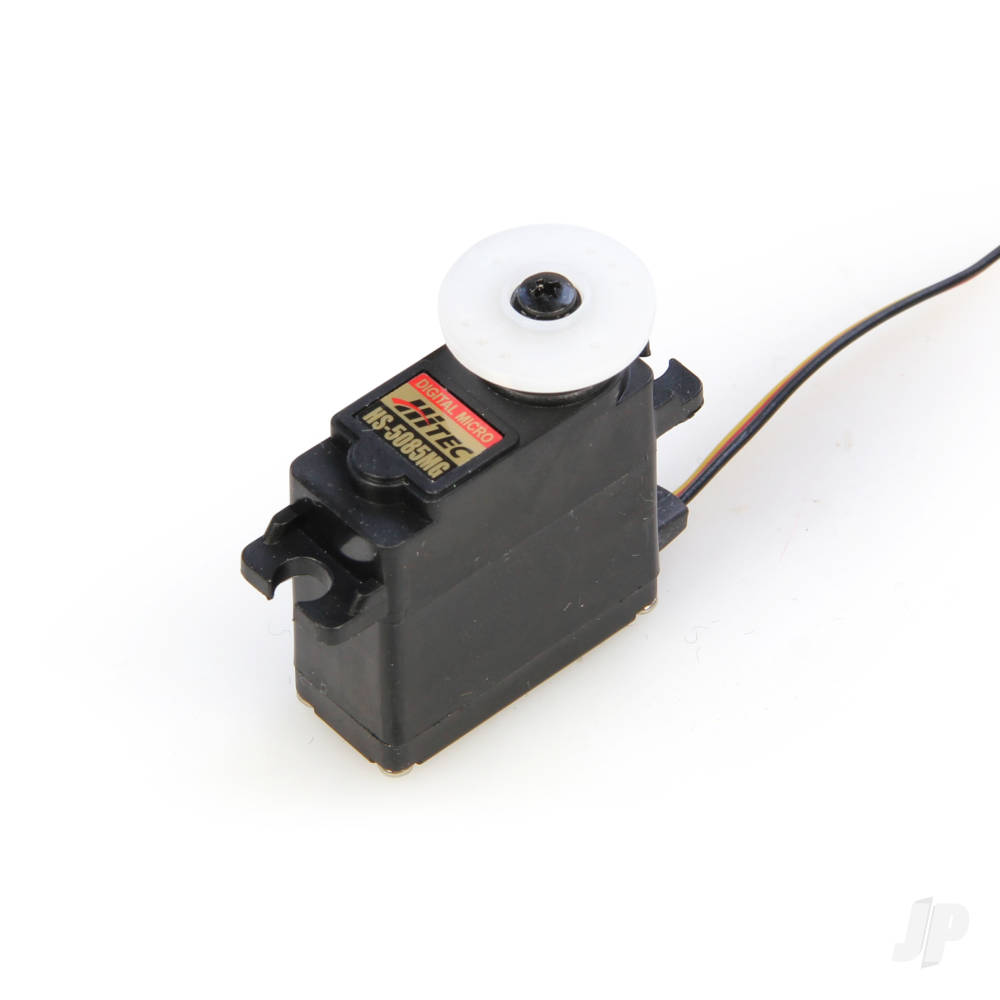

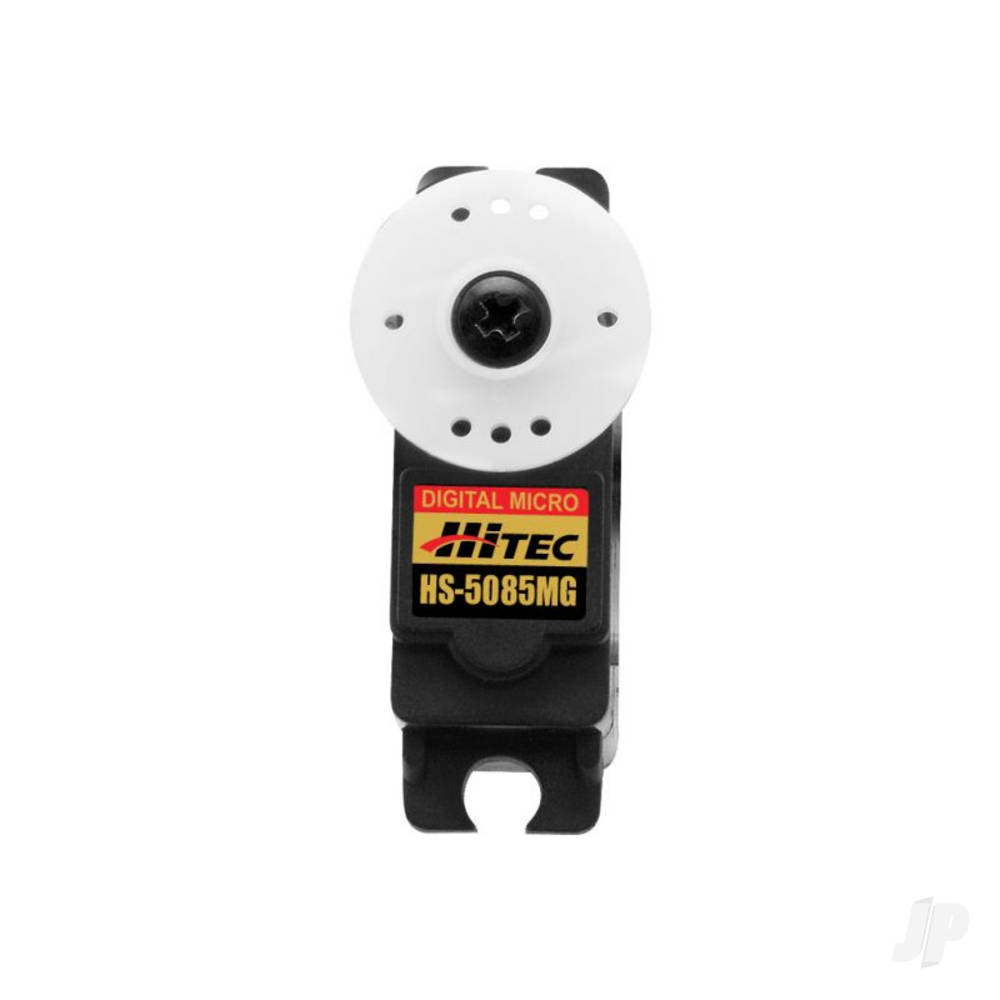

Hitec HS-5085MG Micro Digital Cored Servo 21.9g 4.3kg/0.13s 4.8V - 6.0V

£39.25
Black Friday Savings: £3.93
£35.32

SKU: 2216550

Material Code: 2216550

Brand: Hitec

Check out our drone store

FEATURES

  • High performance digital amplifier.
  • Lighweight metal gears with ball bearing.

DETAILS

digital version of one of Hitec's most popular mini servos the HS-5085MG offers excellent centering, resolution and durability for those looking to save weight without sacrificing performance. A popular servo for smaller airplanes, helis, boats, cars and trucks, the HS-5085MG offers a fine balance between speed and torque.

Advanced Servo Specifications

Control System:+Pulse Width Control 1500usec Neutral
Operating Voltage Range:4.8V to 6.0V
Operating Temperature Range:-20° to +60° (-4°F to +140°F)
Idle Current:3mA
No Load Running Current (4.8V/6.0V):230mA/60° / 290mA/60°
Stall Current (4.8V/6.0V):1,700mA / 2,150mA
Dead Band Width:2usec
Potentiometer Type:2 Slider/Direct Drive
Connector Wire Length:250mm (9.84in)
Connector Wire Gauge:28AWG

Applications:

  • Smaller Airplanes: Provides precise control without adding significant weight.
  • Helicopters: Suitable for models requiring reliable and responsive servos.
  • Boats: Enhances maneuverability in compact marine models.
  • Cars and Trucks: Offers accurate steering and throttle control in lightweight vehicles.
