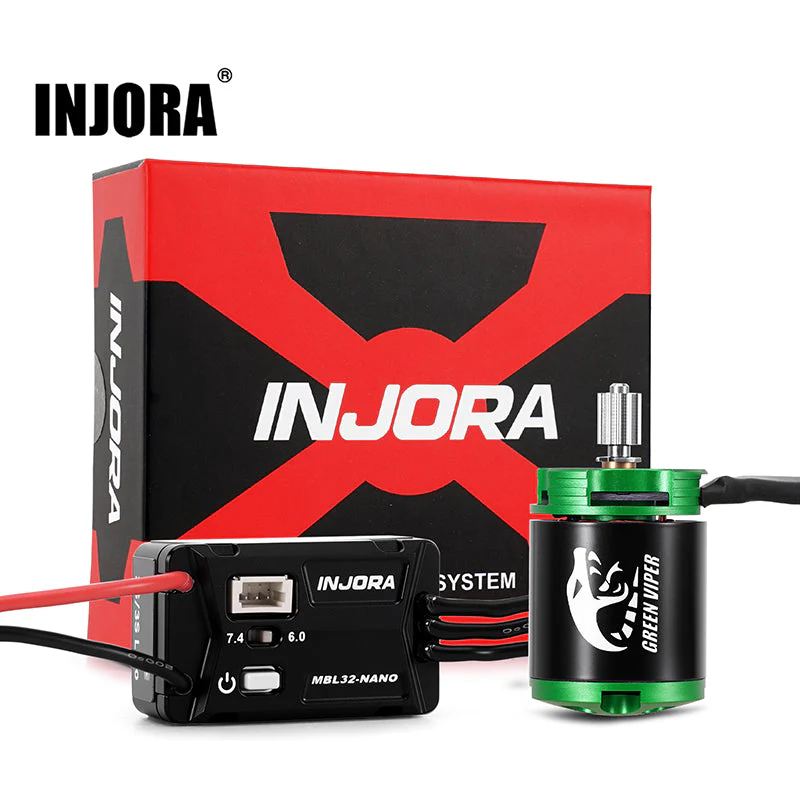

INJORA MBL32-NANO Brushless ESC  & 1621 Green Viper Motor for 1/30 Axial SCX30

Note:

• Not compatible with the stock SCX30 Radio. A transmitter and receiver with a CH2 port are required
• Pre-configured and ready to run. No programming required.
• USB programmer card is not included.

• Please use 2S LiPo!

Features:

• The INJORA MBL32-NANO, based on the AM32 firmware, is meticulously tailored for RC crawlers and is programmable.

• Smooth and linear at low speeds, powerful and aggressive at high speeds. Runs more quietly than brushed systems, producing virtually no noise.

• MBL32-NANO features a built-in BEC with adjustable output: 6V / 7.4V.

• Waterproof Design for all-weather performance.

• Supports PC Programming via USB programmer card.

• Multiple Protections: Low-voltage, fail-safe, and rotor lock protection.

• Runs quieter than brushed systems, with reduced motor noise

• Includes a protective sleeve at the wire outlet for enhanced durability

• Delivers smooth and linear control at low speeds, with powerful and aggressive performance at high speeds

ESC Specifications:

• Part Number: MBL32-NANO

• Continuous Current: 25A

• Peak Current: 45A

• LiPo Cells: 2S LiPo

• BEC Current: 3A

• Output: 6.0V/7.4V adjustable

• Dimensions (L×W×H): 25.5×15×12mm

• Weight: 0.34oz (9.5g)

• Compatible Motors: INJORA 1621/1721
• Waterproof: Yes

Motor Specifications

• Model Number: 1621

• Motor Type: Sensorless Brushless Outrunner

• Waterproof: Yes

• Operating Voltage: 7.4V (2S LiPo)

• RPM/Volt: 3600KV

• Motor Slots: 9

• Motor Poles: 12

• No-Load Current (7.4V): 0.8A

• Max Current: 12A

• Motor Connectors: PH2.0 3-pin

• Dimensions: Φ15.5×21.5mm

• Motor Output Shaft: Φ1.7mm

• Motor Pinion: 0.3mod 11T

• Lead Length: 65mm

• Weight: 14.9g
• Waterproof: Yes

Package List:


• 1 * MBL32-NANO Brushless ESC
• 1 * 1621 Brushless Motor
• 1 * Receiver Connector Cable
• 1 * Instruction Manual
